OPTICAL SYSTEM

P Series & LA Series

Based on Japanese optical technology,
HSG develops multiple types bus laser cutting heads,
including high-power bus cutting head, tube beveling
cutting head, and 3D Five-axis cutting head.

15000~60000W

P Series High-power Intelligent Laser Cutting Head

* Long Optical Path Shaping Design
* Rationalized Air Rectification
* Real-time Monitoring of Cutting Head Status
* Intelligent Bus Height Adjusting System

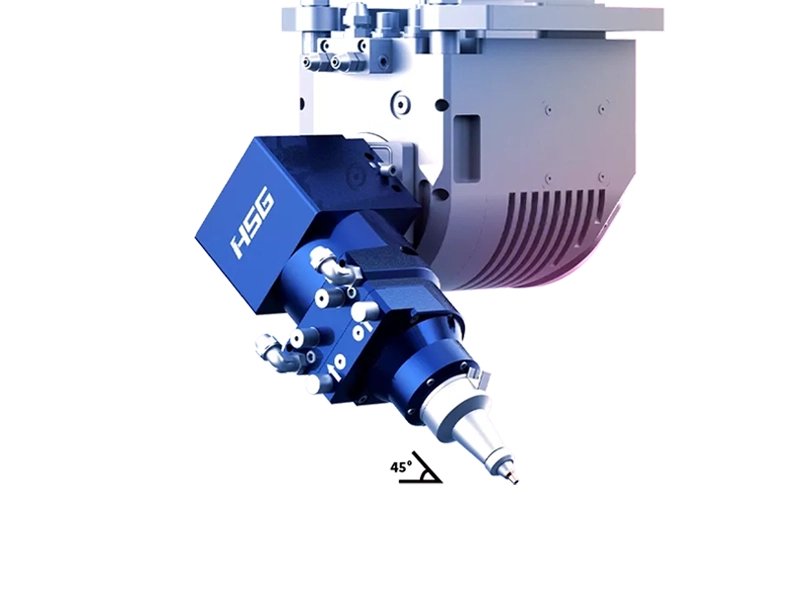

LA4 TUBE BEVELING HEAD

Cut 0-45° Bevel

LA5 FIVE-AXIS INTELLIGENT CUTTING HEAD

* Rotation Range: N*360°±135°Oscillation
* Reliable Airway Design for Quality Cutting
* Dynamic Sealing for Improved Service Life
* HSG Unique Optical Design, Stable and Reliable Optical Characteristics
* Intelligent Cutting Collision Avoidance Function for 360° Collision Protection

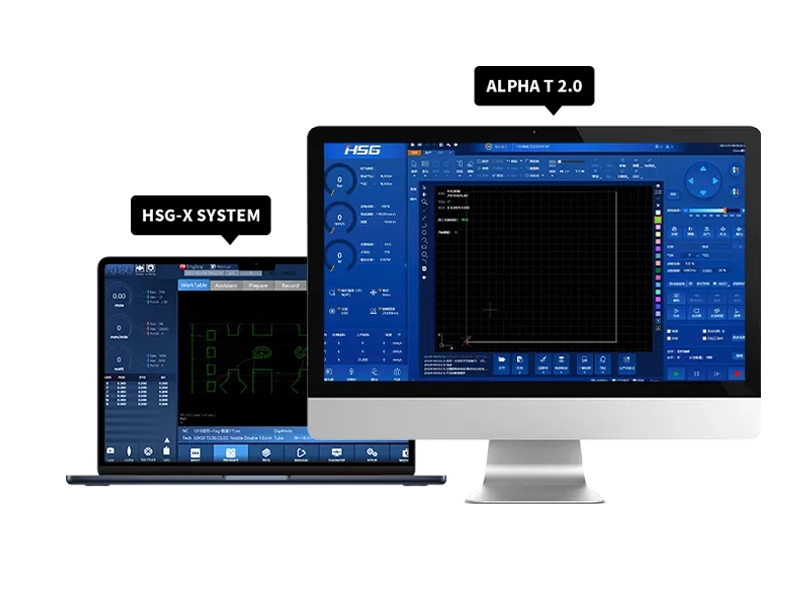

INTELLIGENT BUS CNC SYSTEM

HSG develops high-power bus cutting system and multi-touch tube cutting system

* Typesetting&Nesting * Production order control
* Increase machining speed * Decrease interpolation cycle

For Sheet Metal: Visual Residue Cutting, Sliding Obstacle Avoidance, Non-inductive Piercing, Scarless Microlink, Exported Drawings By Scanning, Visual Residue Cutting...
For Tube Metal: Shaped Last Cut,Tube Splicing Technology , Beveling Cutting, Section-bar Cutting...

HSG focuses on the further development and upgrade of metal processing solutions, based on the actual demands of global customers.

HSG INTELLIGENT CHUCKS

Chuck Technology

HSG’s unique Intelligent Digital Chuck, with wireless feedback, creates a closed-loop control system that maximizes cutting efficiency. It makes tube cutting more productive, precise, and reliable.

3+1 Twin Chucks

Round Tube:40-500mm
Square Tube: 40-350mm
Weight of Single Tube:1500kg

Four Heavy-duty Chucks

Round Tube:40-660mm
Square Tube: 40-450mm
Weight of Single Tube:3000kg

4+1 Full-track Chucks

Round Tube:120-715mm
Square Tube:120-500mm
Weight of Single Tube:4000kg
