HSG laser cutting machine bus control system

Bus Control System

It enables data transmission via EtherCAT bus and features fast speed and stability. This system is easy to be operated and rich in functions. Even green hands can cut high-quality samples.

HSG sheet laser cutting machine

Monitor core components in real time

HSG sheet laser cutting machine

Millisecond-level follow-up response technology

HSG sheet laser cutting machine

Click to create processing report

HSG sheet laser cutting machine

Compatible with codes of international brands

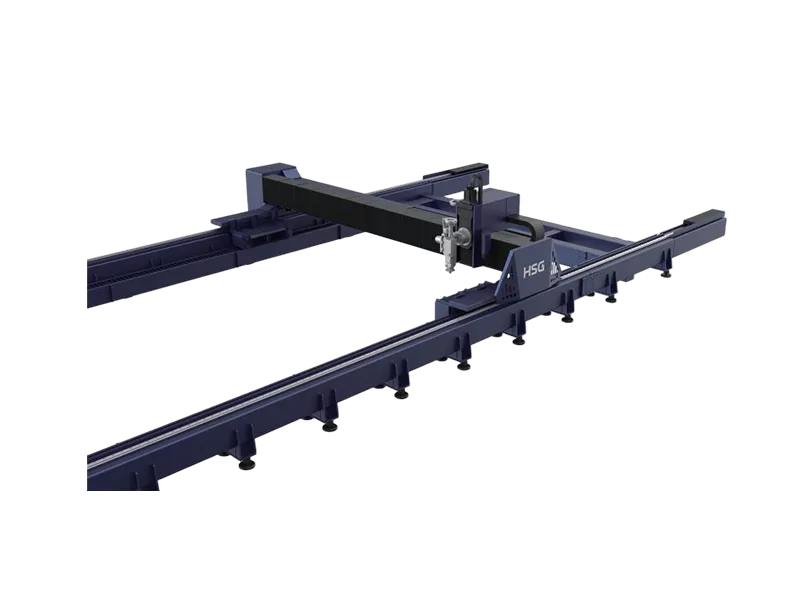

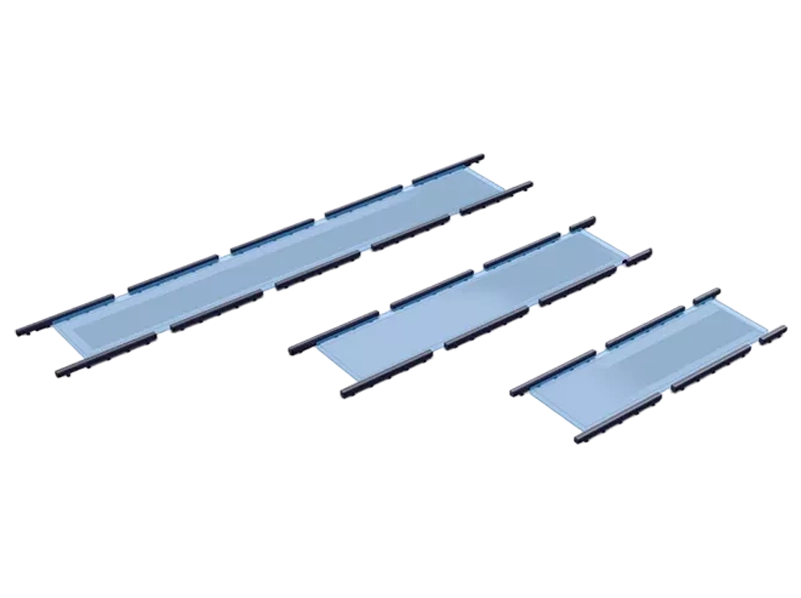

Segmented Splicing Machine Bed

The machine bed is made of several sections and allows to be customized as needed for infinite splicing machine beds.Cutting large-format sheet will be easily handled.

HSG laser segmented splicing machine bed
HSG laser cutting machine production process database

Production Process Database

Users can invoke cutting technology from the database when cutting sheet of different materials and thickness.

Nano joint
Fly cutting of thin sheet
Edge searching for round disc

Bus-based Laser Cutting Heads

HSG has developed multiple high-power bus laser cutting heads that range from 10kW to 40kW based on its study on interaction between metal materials and laser. With that, thick sheets can be cut stably in batch.

HSG sheet laser cutting machine

Optical filming to prevent lens pollution

HSG sheet laser cutting machine

Real-time monitoring of laser focus

HSG sheet laser cutting machine

Bus-based height adjusting system

HSG sheet laser cutting machine

Laser path reshaping technology

HSG laser bus-based laser cutting heads

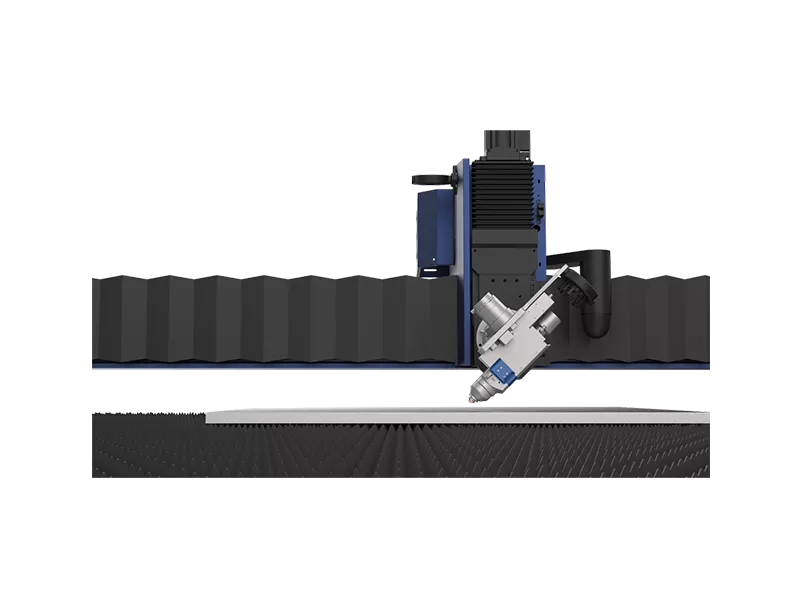

HSG laser cutting machine process various types of bevels

Process Various Types of Bevels

P series cutting head with HSG bus system can realize 0-45°bevel cutting, including V bevels, X bevels, Y bevels etc.

Available: Bevel-GFA

GFA

Technical Parameters

  • Model
  • Power
  • Processing format (L*W)
  • X/Y-axis positioning accuracy
  • G12025FA
  • 12000W-60000W
  • 12100*2500mm
  • ±0.05mm/m
  • G12035FA
  • 12000W-60000W
  • 12100*3500mm
  • ±0.05mm/m
