HSG laser cutting machine one machine equipped with four functions

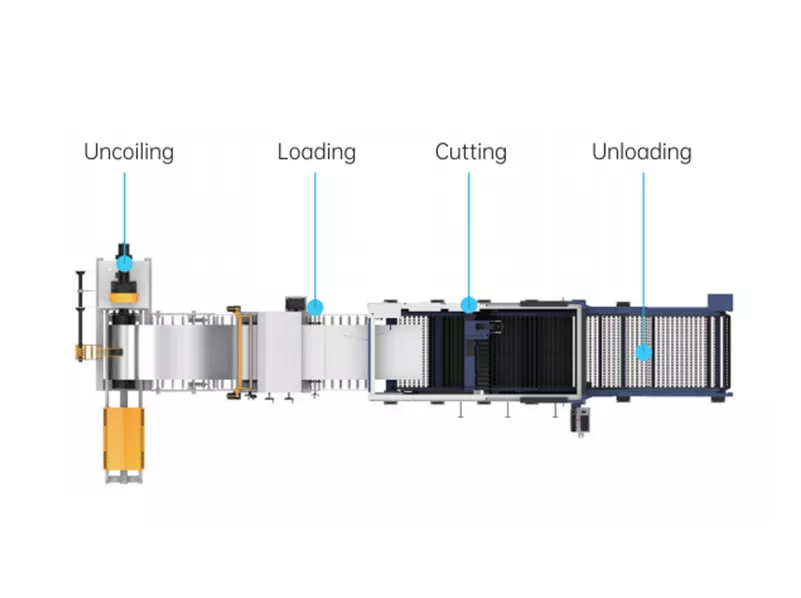

One Machine Equipped With Four Functions

The machine has four functions, including uncoiling, feeding, cutting and blanking, and is updated from single cutting to one-stop processing line.

Flexible Processing

The machine can satisfy the demand of production change and process different shapes of parts flexibly. The machine only needs to be imported processing program to produce different types of products.

* Economic & Scientific Production
* No Need For Modules

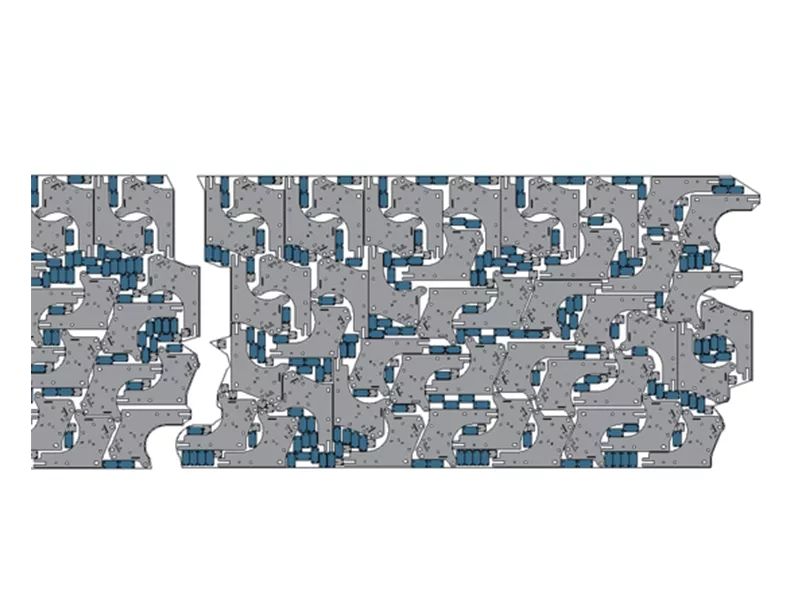

* Save Materials
* Material Using According To Needs
* Synchronic Cutting and Feeding

HSG laser cutting machine flexible processing
HSG laser cutting machine automatic unloading

Automatic Unloading

Optional gantry structure or robot unloading achieves automatic sorting.

Multiple Processes Integration (Optional)

Delivery/film mulching/scrap collection organizations achieve multiple processes integration.

HSG laser cutting machine multiple processes integration
HSG laser cutting machine multi-uncoiling support construction

Multi-uncoiling Support Construction (Optional)

The support construction can make different rolls shift.

Double Beams&Heads (Optional)

Optional double beams and heads can lead to synchronic double cutting heads cutting.

HSG laser cutting machine double beams and heads

GL

Technical Parameters

  • Model
  • Power
  • Processing format (L*W)
  • X/Y-axis positioning accuracy
  • G3015LA30
  • 1500W-6000W
  • 3000*1500mm
  • ±0.03mm/m
  • G4015LA40
  • 1500W-6000W
  • 4000*1500mm
  • ±0.03mm/m
  • G6020LA60
  • 1500W-6000W
  • 6000*2000mm
  • ±0.03mm/m
