X SERIES

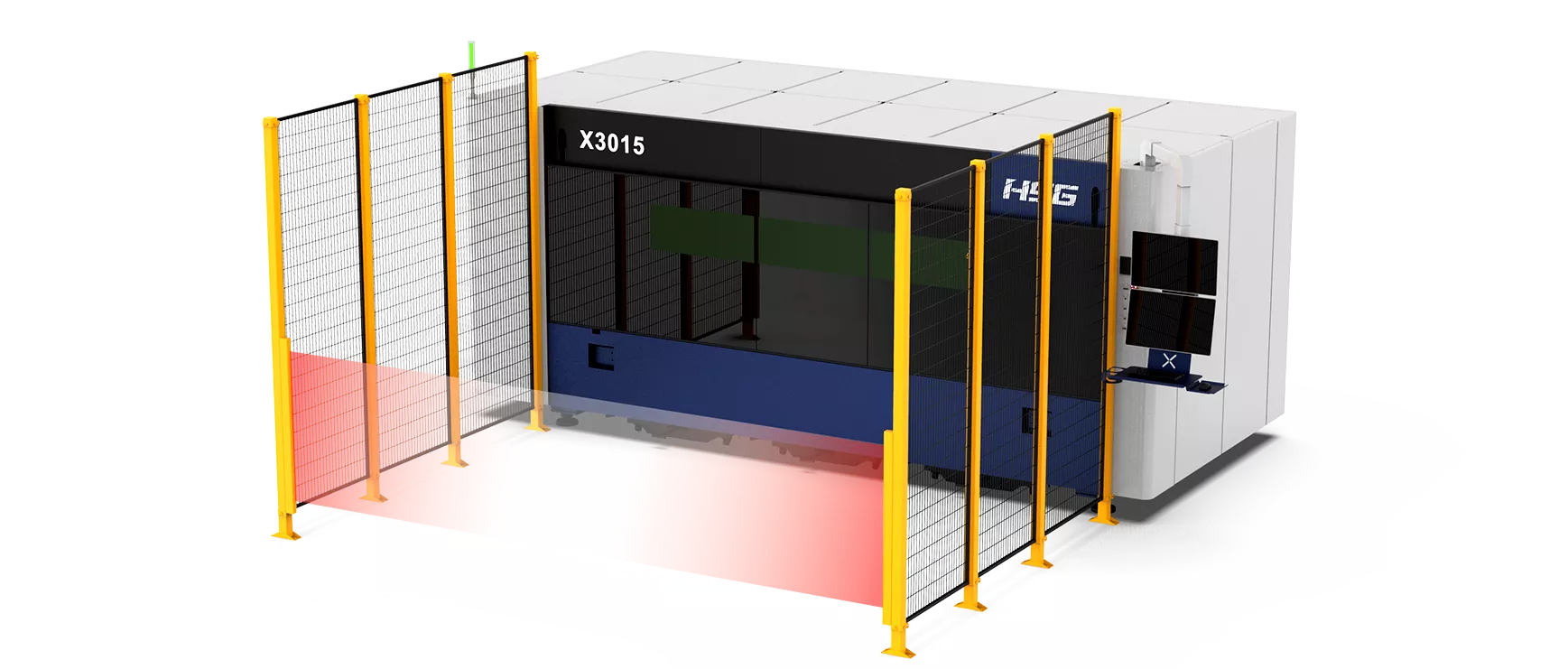

Ultra-high-precision Sheet Laser Cutting Machine 1500W-3000W

  • Max. Repositioning Accuracy ±0.005mm
  • Unique Push-pull Platform
  • Small in Size with Integrated Electric Cabinet
  • Optional Visual Positioning System

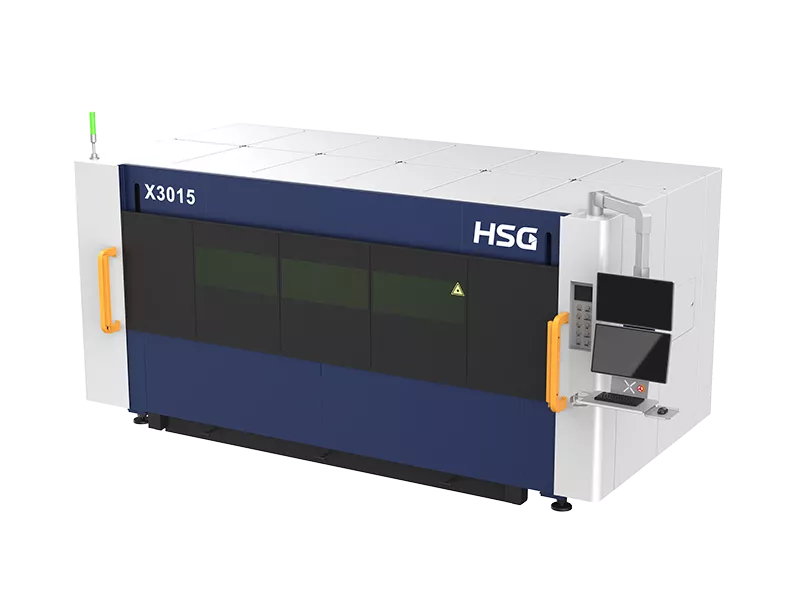

Fully-sealed Structure, Eco-friendly Cutting

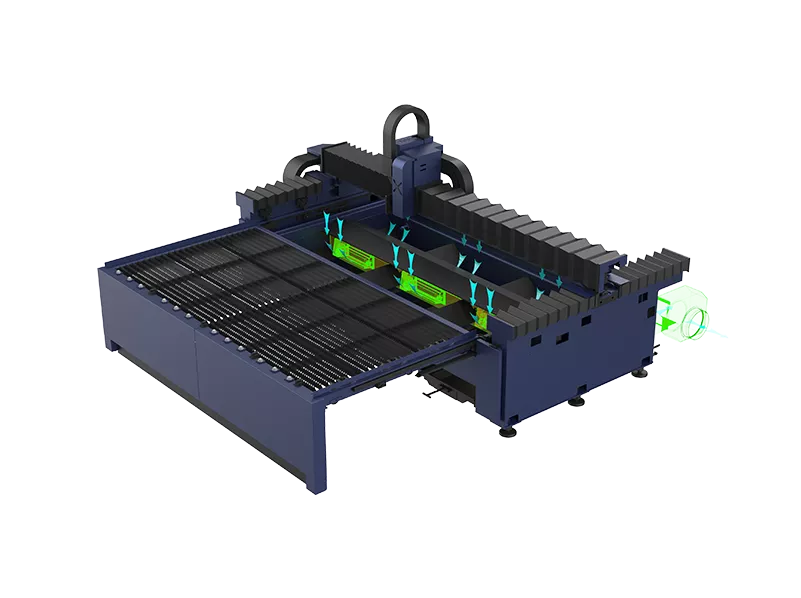

With top cover, the machine is fully sealed and can discharge cutting smoke instantly with the help of zoning ventilation system in cutting area.

Alpha T Bus CNC System

Alpha T, self-developed by HSG LASER, can make data transmission rapid, stable and accurate only via a network cable as a technically advanced bus system.

  • Active reminder of machine maintenance

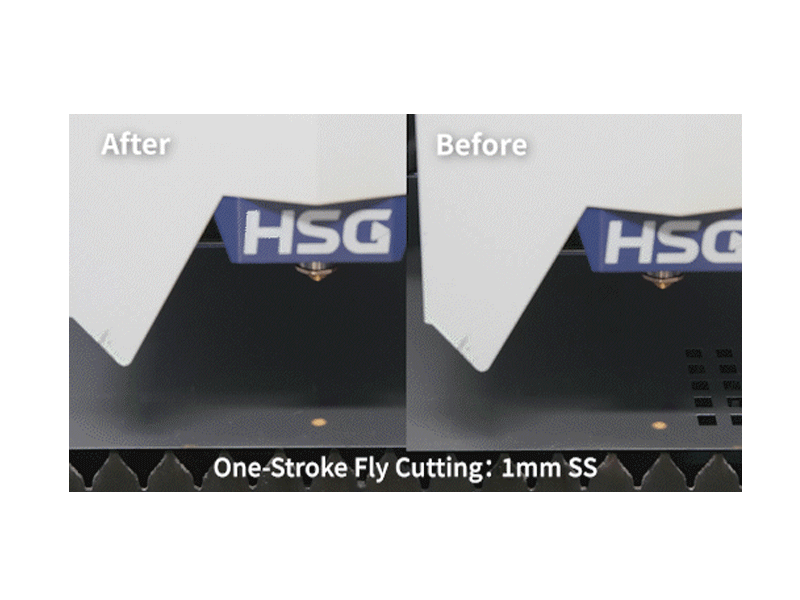

  • Ultra-high-speed scanning & cutting with micro-connection
  • Active obstacle avoidance
  • Real-time monitoring of core components
  • Build-in nesting software

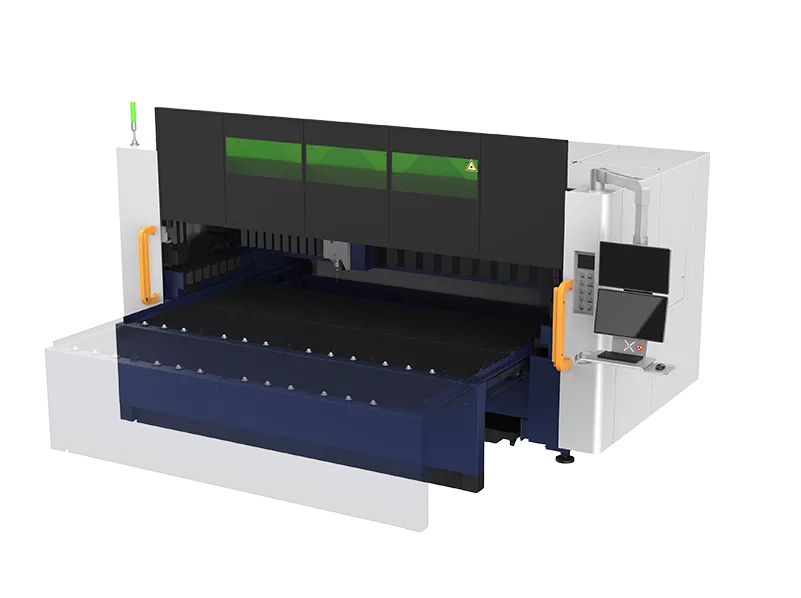

Push-pull Single Platform

The unique platform makes rear loading possible for thin and ultra-long sheets. Anti-shake clips are installed on both sides of platform to prevent vibration while cutting thin sheet. Tips: The configurations above vary from model to model. The latest files shall prevail.

Marble or Plate-welded Machine Bed

Good rigidity, high hardness, maintenance-free, rust-proof, anti-magnetic, insulating, no deformation after long work. Resistant to smash and high temperature due to anti-burning manganese steel plates covered on cutting area.

German WITTENSTEIN
Alpha Speed Reducer,
Gear Wheels and Racks

Alpha speed reducer and gear wheels are welded together to create high concentricity, rigidity and transmission precision for 10 years.

Technical Parameter

  • Model
  • Power
  • Working Area (L*W)
  • X/Y-axis Positioning Accuracy
  • X/Y-axis Repositioning Accuracy
  • Max. No-load Speed
  • Max. Acceleration
  • Max. Loading Weight of Platforms
  • Overall Dimensions (L*W*H)

*The above data are for reference only, subject to the actual product!-Click the left and right button on the above picture to view more.
